Roland SG3-540 with LCD screen - $7,500 (Tucson)
QR Code Link to This Post
The Roland TrueVIS SG3-540 is a 54" eco-solvent printer/cutter that delivers exceptional print quality, productivity, and ease of use. Designed for sign and graphics providers, this versatile machine is ideal for producing a wide range of applications, including signage, vehicle wraps, labels, decals, and apparel.
Key Features:
* 54" print-and-cut capacity handles large signage, vehicle wraps, and wall graphics
* True Rich Color 3 technology for ultra-vivid color and smooth transitions

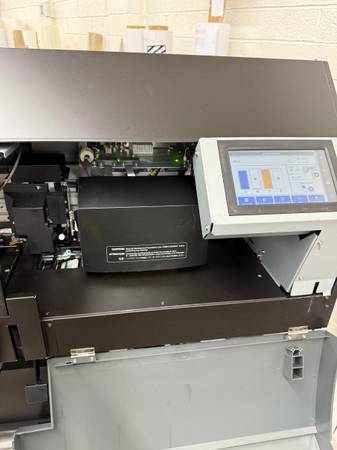

* 7-inch LCD touch-panel control with intuitive interface
* Automatic media gap and feed adjustment for efficient setup
* Integrated take-up unit for unattended printing
* Perforated sheet cut function for easy separation of prints
* Eco-solvent TR2 inks in CMYK configuration
* Includes VersaWorks® 6 RIP software for streamlined workflow
Specifications:
* Print Width: Up to 52.9 inches
* Ink Configuration: CMYK
* Ink Type: TR2 eco-solvent inks (500 ml pouches)
* Print Resolution: Up to 1200 dpi
* Cutting Speed: 10 to 300 mm/s (0.39 to 11.8 in/s)
* Cutting Blade Force: 30 to 500 gf
* Media Thickness: Up to 1.0 mm (39.3 mil) with liner for printing
* Media Width: 11.7 to 54 inches (297 to 1,371 mm)
* Connectivity: Ethernet (100BASE-TX/1000BASE-T, automatic switching)
* Power Consumption: Approx. 1,090 W (during operation)
* Dimensions (W x D x H): 103.7 in. x 29.5 in. x 52.0 in. (2,632 mm x 748 mm x 1,320 mm)
* Weight: Approx. 404 lbs (183 kg)
Applications:
The SG3-540 is versatile and suitable for various applications, including:
* Signage and banners
* Vehicle wraps and graphics
* Labels and decals
* Apparel and heat transfer graphics
* Window graphics
* Wall decor and custom interiors
